FRP Grating Construction Walkways for Site Access

What an FRP Construction Walkway Has to Do

A construction walkway is first a route: it takes people from one part of the site to another without forcing them through mud, stored material or an unsafe edge. Fiberglass grating (FRP, or glass-reinforced plastic) adds a light, open and corrosion-resistant surface to that route. It is also a product with a structural limit, which is why a useful inquiry begins with the support condition and the intended user rather than with a thickness alone.

This page covers pedestrian access in ordinary environments. The usual 30 mm molded panel is a practical starting point for ground-level routes and short supported runs. It is not a default answer for a crossing that carries a forklift, a platform subject to temporary works approval, or a walkway beside a strong chemical process. Those cases move to a project review before a panel is confirmed.

The distinction between a walkway and a catwalk also matters. A walkway is the general access route. A catwalk is usually a narrower route serving equipment, maintenance or a defined industrial area. Width, guarding and support follow the actual layout and the project’s safety requirements; the name on the quotation does not settle them.

Ground-Laid Walkway or Spanning Walkway?

A ground-laid FRP walkway sits on compacted ground, a prepared base, sleepers or a continuous frame. Foot load passes through the panel into that support. The check is mainly about flat bearing, drainage, edge step, panel movement and keeping the route clear. The panel should not rock on high points or be left free to slide when someone catches an edge.

A spanning walkway has an unsupported distance underneath. The panel now carries people between supports, so its clear span, bearing and load case have to match the panel data. Measure between the support edges, not between beam centres, and do not use the overall panel length as the span. Both bearing edges also need enough contact; a beam in the right place can still give poor support if the panel touches only a narrow high point.

A trench or gap makes this difference obvious. A panel can look continuous in a photograph while the supports underneath carry a much shorter clear opening than the buyer assumes. Send the support plan with the dimensions, and mark any opening that changes the load path.

Molded or Pultruded FRP Walkway Grating?

Molded grating is cast as one grid, so it distributes load through both directions of the mesh. It is commonly the economical direction for pedestrian access, shorter supported routes and layouts that need several cut pieces. Full panels and factory-cut pieces can be supplied. Cutting an opening still removes part of the grid, so support around the opening has to be reviewed.

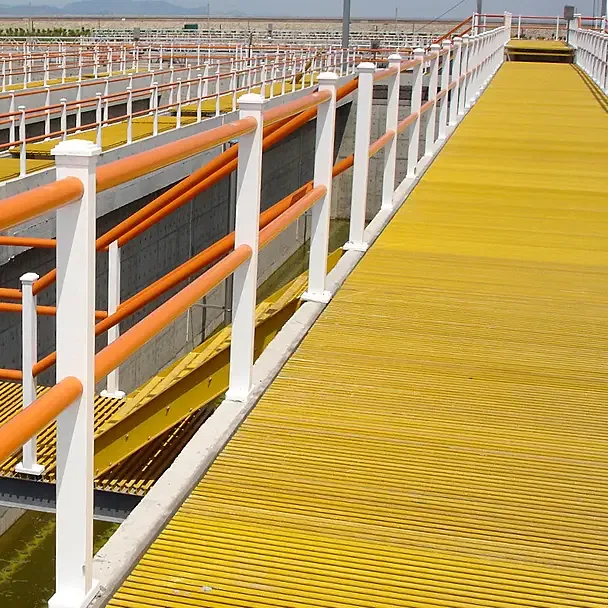

Pultruded grating is assembled from parallel bearing bars and cross rods. The principal load travels along the bearing bars, which means the panel has a direction. The bars have to run from one effective support to the other, and a rotation or a cut can change the span condition. Pultruded panels are made to project dimensions and can suit a different support layout, but the section and bearing direction must be checked rather than assumed.

The practical choice is therefore not “molded is cheap, pultruded is strong.” Compare the same clear span, support condition, load, piece size and installation requirement. Read the molded grating configuration guide or the pultruded I and T series after the route layout is clear.

Pedestrians, Trolleys and Plant Are Different Loads

The 30 mm molded walkway starting point is for people on foot in ordinary environments. A hand tool carried by a worker is part of that practical use. A pallet trolley, a wheelbarrow, a dumper, a forklift or a stack of stored material is a different load case. Wheel loads act on a small area and may arrive with impact or repeated movement.

A pedestrian requirement should not be stretched until it sounds like a vehicle approval. If plant crosses the route, send the wheel or point load, contact area, support layout and where the load travels. The answer may still be FRP, another panel structure or a different support scheme, but it has to come from a matched check.

The same rule applies to temporary platforms and working decks. A walkway panel can be part of such an assembly, but a complete platform also needs a support design, edge protection, access and approval for its use. We supply the grating and agreed fixings; the project duty holder remains responsible for the temporary works.

Supports, Clips and Panel Movement

Support comes first. A panel has to sit flat on the base or frame, with bearing at the positions shown on the layout. Packing a low point with an arbitrary shim or forcing a clip does not correct a support problem. If the real structure differs from the drawing, stop and review the difference before cutting.

Clips restrain the panel. M and L clips commonly hold a panel down onto a support, while a C clip joins adjacent panel edges and helps control the step at a joint. The clip has to match the panel height, the bar and the support section. Its positions come from the support layout, not from a single clips-per-panel figure. Read the FRP grating clip and fixing guide when the support sections are known.

Edge restraint deserves its own thought on a ground-laid route. A panel can be walked on successfully and still move when a machine passes, when it is washed or when someone catches a cut edge. The edge detail, fixing pattern and any trim should be part of the layout rather than an afterthought.

Wet, Muddy and Outdoor Construction Routes

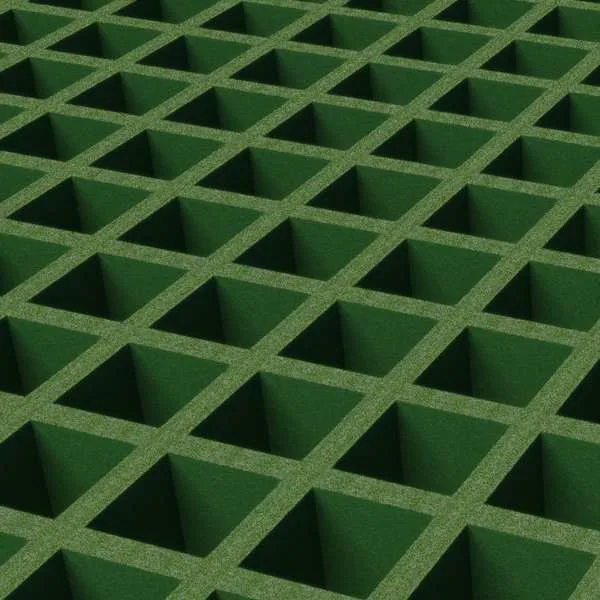

Concave is the standard molded surface. It sheds water and is relatively easy to sweep or wash, but mud, oil or a heavy film can still reduce grip. Grit puts an abrasive layer at the walking surface and is considered where the route stays wet or muddy. It also traps debris differently, so the cleaning method belongs in the same decision.

Color is a separate choice from surface and resin. Yellow is often used to make an access route visible on a site, while green, gray, blue and black are also available. A color does not prove slip resistance, chemical resistance or fire performance. Ask for the test basis that matches the property the project actually requires; read the surface and treatment comparison before approving a finish from a photograph.

Outdoor exposure should also be stated at inquiry. UV appearance, required color retention and the expected cleaning regime may change the resin or surface direction. Our economical isophthalic polyester formulation is an ordinary-environment starting point, not a long-life outdoor coating system.

Installation and Handover

The site sequence is straightforward when the layout is settled: measure the supports, dry-lay the pieces, mark cuts and openings, seal cut faces, fit the agreed clips, check the joints and record the finished condition. Factory cutting is preferred where a checked cut list can be produced, because the pieces can be cut, sealed and marked before packing.

Follow the detailed FRP grating installation guide for support checks and fixing order. At handover, look for rocking, a step at a panel joint, missing washers, cracked bars, damaged cut edges and an opening without support. A panel that feels firm underfoot has not proved its allowable load; the structural check and the installation check are separate.

Reusing a Temporary Construction Walkway

A temporary route is easier to reuse when it is designed as a set of handled pieces rather than as the largest possible panels. Smaller pieces, a repeatable clip pattern and clear piece marks let the walkway return to the same layout after a move. Keep the drawing and piece list with the panels; labels that fade or fall off remove much of the benefit.

Inspect the panels before every reuse. A chipped edge can be assessed for sealing, but a cracked or broken structural bar is a different condition. It should be assessed and replaced or repaired under an agreed method, not filled and painted over. If the panel has been cut for a previous opening, confirm that the new support condition still works with the remaining bars.

What the Factory Can and Cannot Confirm

We can confirm what we manufacture: the panel structure, ordered thickness and mesh, resin direction, surface, dimensions, cutting, edge treatment, clip type and packing scope. Those details should all appear in the quotation and approval drawing so the factory and site are working from the same revision.

We cannot confirm the strength of a base we have not seen, the adequacy of a support frame, the safety of an access route or the compliance of a complete temporary works system from a photograph. Those conditions belong to the project. Sending them with the inquiry helps us identify the right panel and quote the actual scope; it does not transfer design responsibility to the supplier.
