Dengtai Industry · Manufacturer in Hebei, China

Fiberglass & FRP Grating Panels, Made to Fit

Molded and pultruded fiberglass grating, made in Hebei. Full panels or factory-cut pieces, with resin, surface and clips matched to your application.

Request a Grating Quote Compare Grating Products

15–30 calendar days from deposit

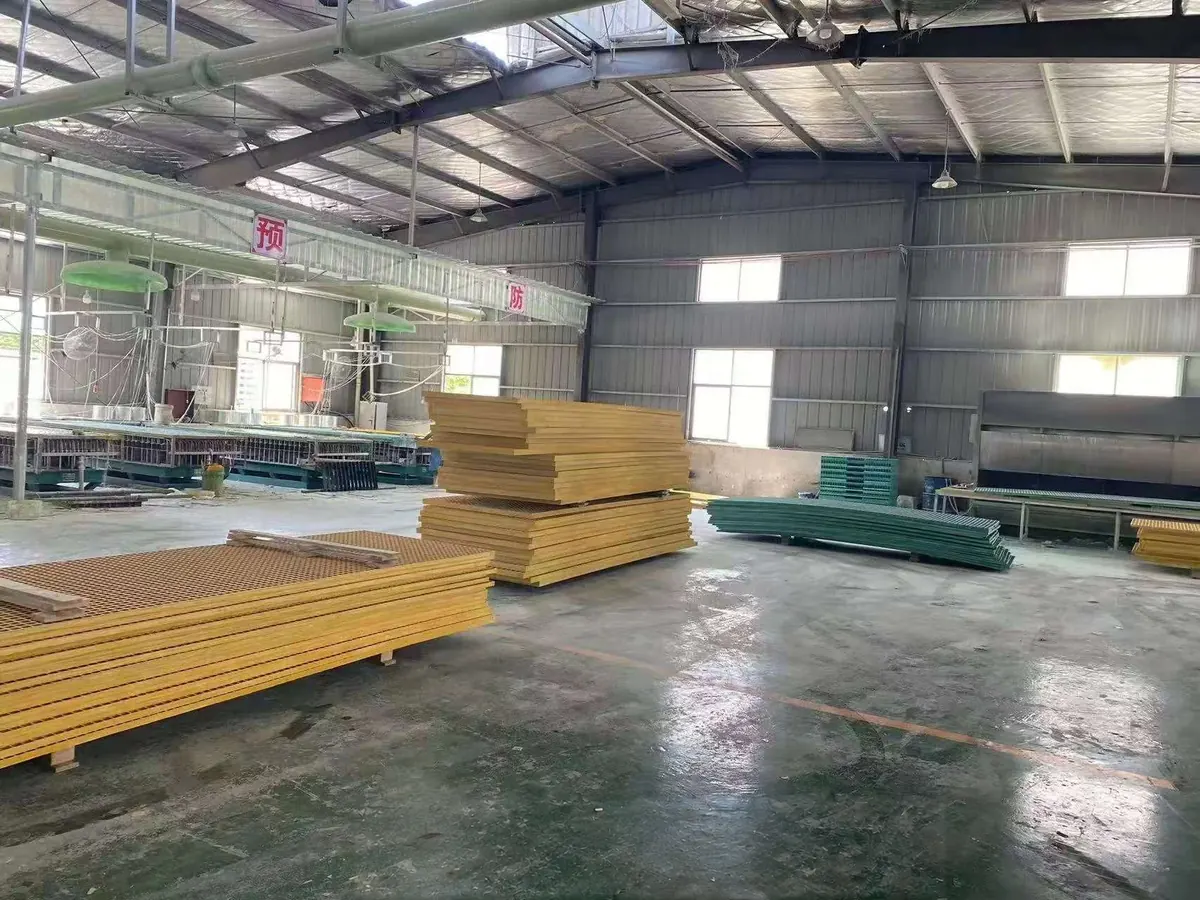

Factory workshop with grating molds and stacks of yellow and green FRP panels

Dengtai factory workshop and grating panels.

Products

Find Your Fiberglass (FRP) Grating Type

FRP grating combines glass fiber reinforcement with a thermosetting resin; it is also called fiberglass or GRP grating. It is an alternative to steel for corrosion-prone access areas when the resin and structure suit the duty.

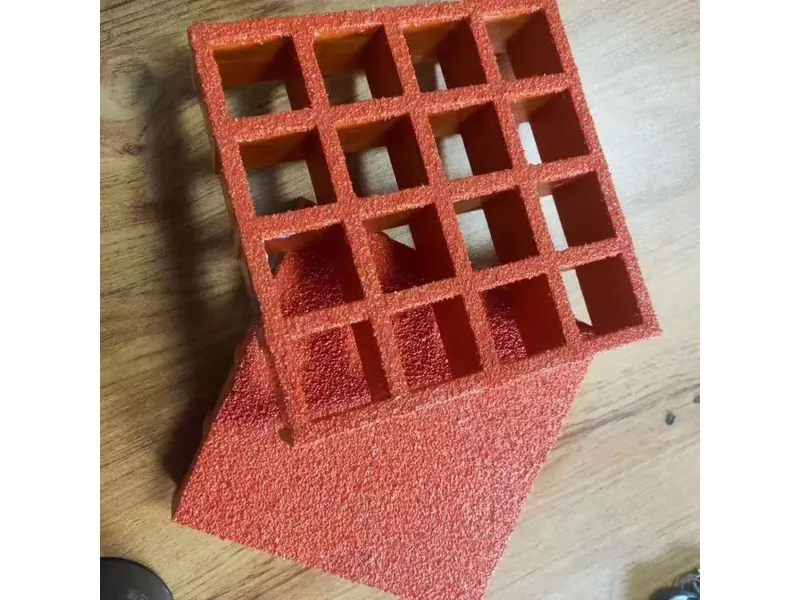

Red molded FRP grating sample with square openings and a textured surface — Dengtai molded grating sample with a textured finish.

Molded fiberglass (FRP) grating

An integral mesh for walkways, platforms and access flooring. Consider molded panels when loads and cutouts need to be reviewed in both directions.

View molded FRP grating specifications

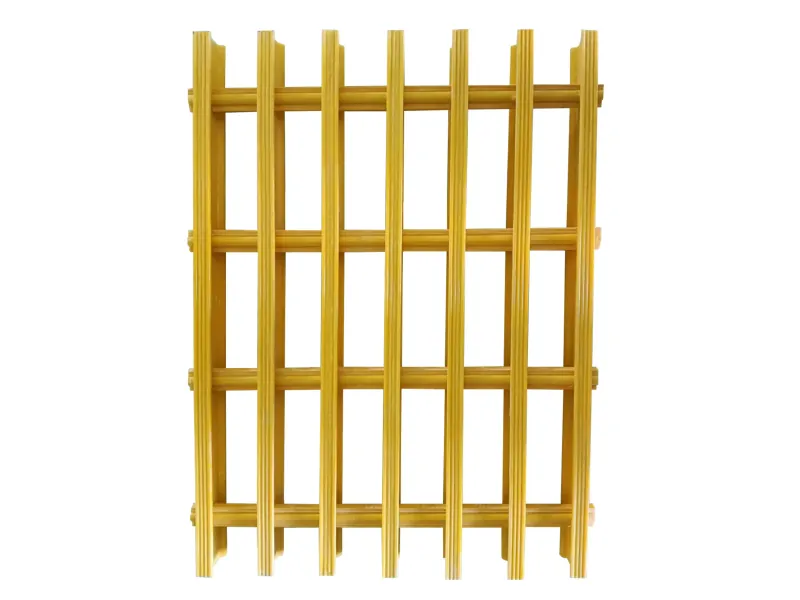

Yellow pultruded FRP grating with parallel bearing bars joined by cross rods — Dengtai pultruded panel showing bearing bars and cross rods.

Pultruded fiberglass (FRP) grating

Bearing bars assembled with cross rods. Consider pultruded panels where the support layout suits a defined load-bearing direction; bar section and span are selected together.

Review pultruded bearing-bar configurations

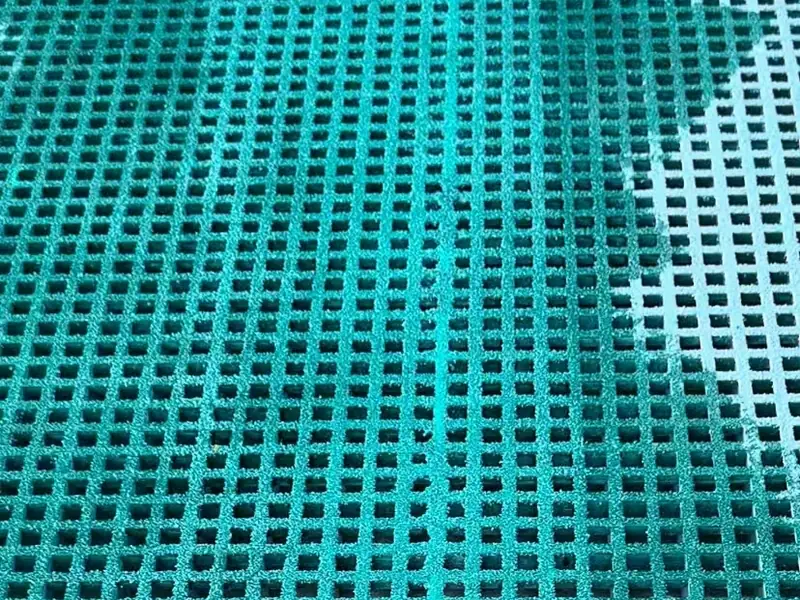

Mini mesh FRP grating

A small upper mesh over a wider supporting mesh, commonly 19 × 19 mm over 38 × 38 mm. Consider it where smaller openings are needed, while keeping drainage and an open surface.

Compare double-layer mini mesh sizes

Covered FRP grating and solid-top options
For a continuous surface. Review the base panel, cover connection and drainage as an assembly.
FRP grating stair treads and covers
For stair access. Confirm whether you need a load-bearing tread or a cover over an existing step.
M, L and C grating clips
Match clip height, material and fixing positions to the panel and its supports.

Size examples

FRP Grating Specifications at a Glance

Selected supply configurations, not a complete catalog or stock list. Mesh dimensions are nominal pitch; confirm the clear opening on the drawing. Load capacity still depends on the span and structure.

View full grating sizes and mesh details

Specification	Value
Molded panels	25, 30 or 38 mm thick; 38 × 38 mm pitch Panel size examples: 1220 × 2440 or 1220 × 3660 mm for these configurations.
Double-layer mini mesh	38 mm thick; 19 × 19 mm upper / 38 × 38 mm lower pitch Panel size examples: 1220 × 3660 or 1007 × 4007 mm.
Pultruded I / T profiles	25.4, 38.1 or 50.8 mm bearing-bar heights Available height depends on the I or T profile. Confirm bar width, pitch, direction and panel dimensions together.

A practical starting point

Match Resin, Surface and Span

These are starting recommendations. Follow the guide for your actual exposure, supports and acceptance criteria.

When FRP is worth considering — Consider FRP for wet, salty or chemically exposed access areas when the resin suits the exposure. Its relatively low panel weight can help with handling and removable covers; compare actual piece weights with the steel alternative. Confirm the service temperature and structural requirements before replacing an existing metal panel. Compare FRP and steel for the same duty
Choose resin for the exposure — General-purpose polyester is our economical starting point for ordinary access. Isophthalic polyester is another candidate for water or chemical exposure. We usually start with vinyl ester for wastewater and chemical service; epoxy is assessed as a separate system. Compare actual grades against the chemical, concentration and temperature. Compare polyester, vinyl ester, epoxy and phenolic resins
Separate walking surface from special functions — Start with concave for general access, or grit for frequently wet or oily areas. Fire and smoke requirements can lead to a phenolic system or a specified fire-retardant formulation. Anti-static and UV treatments are separate choices, with their own acceptance criteria. Choose a surface, fire, anti-static or UV treatment
Match load capacity to the support span — Thickness alone does not tell you how much a panel can carry. Match the clear span, bearing direction, load type and allowable deflection to the exact configuration. A pedestrian panel is not automatically suitable for vehicles. Check FRP grating load and span requirements
Specify the pieces you need — Send panel sizes or a cut list, openings and quantity. We can cut and drill in the factory, add requested resin edge sealing, and match clips to panel height. Factory fabrication can reduce site work and unused material. Check panel thickness, mesh and available sizes

Applications

Start With Your Working Environment

Three common uses, with the choices that matter before ordering.

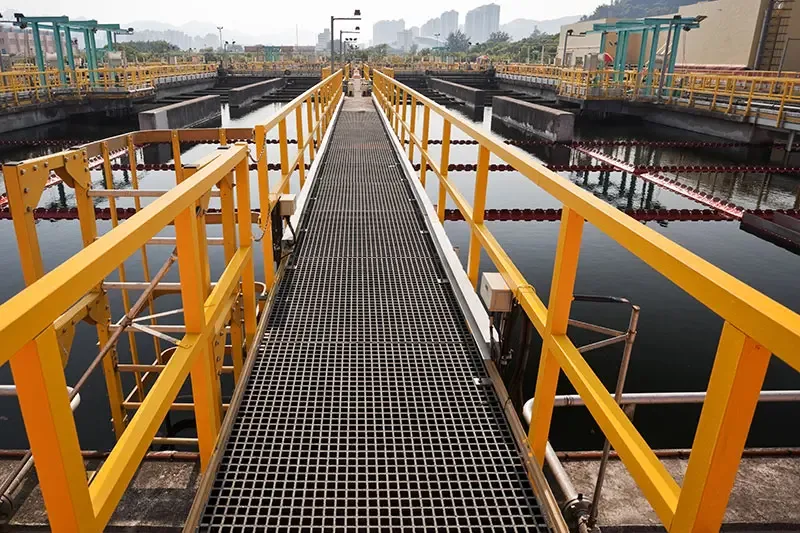

Grating walkway and handrails beside water-treatment tanks — Grating access walkway beside water-treatment tanks.

Wastewater treatment

Our usual resin starting point is vinyl ester. Tell us the process area, chemicals and temperature so dosing areas and general access can be specified separately.

Review wastewater grating requirements

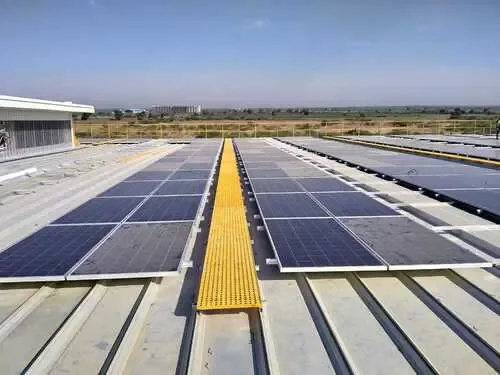

Yellow grating maintenance walkway beside solar panels.

Solar maintenance walkways

Cut pieces can follow the rail layout with matched M clips. Review rail spacing, pedestrian load and a grit surface together before confirming panel thickness.

Plan FRP grating for solar walkways

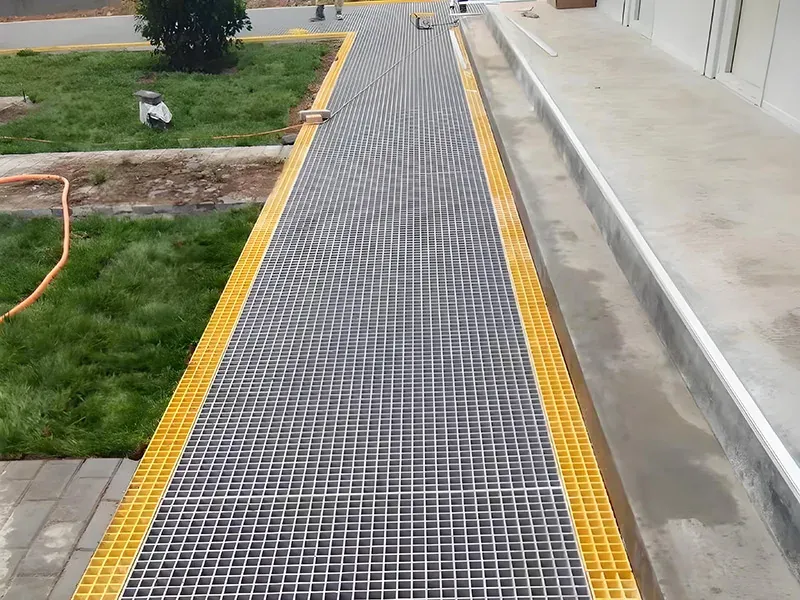

Grating pedestrian access path at a construction site — Grating pedestrian access at a construction site.

Construction site access

Our usual starting configuration is isophthalic unsaturated polyester resin with alumina filler — the economical direction — 30 mm thick with 38 × 38 mm mesh, for pedestrian access in ordinary environments. Support spacing still determines the usable load.

Review construction walkway configurations

Factory supply

Manufacturing and Fabrication in Hebei

Dengtai makes both grating structures and prepares panels for your agreed installation layout.

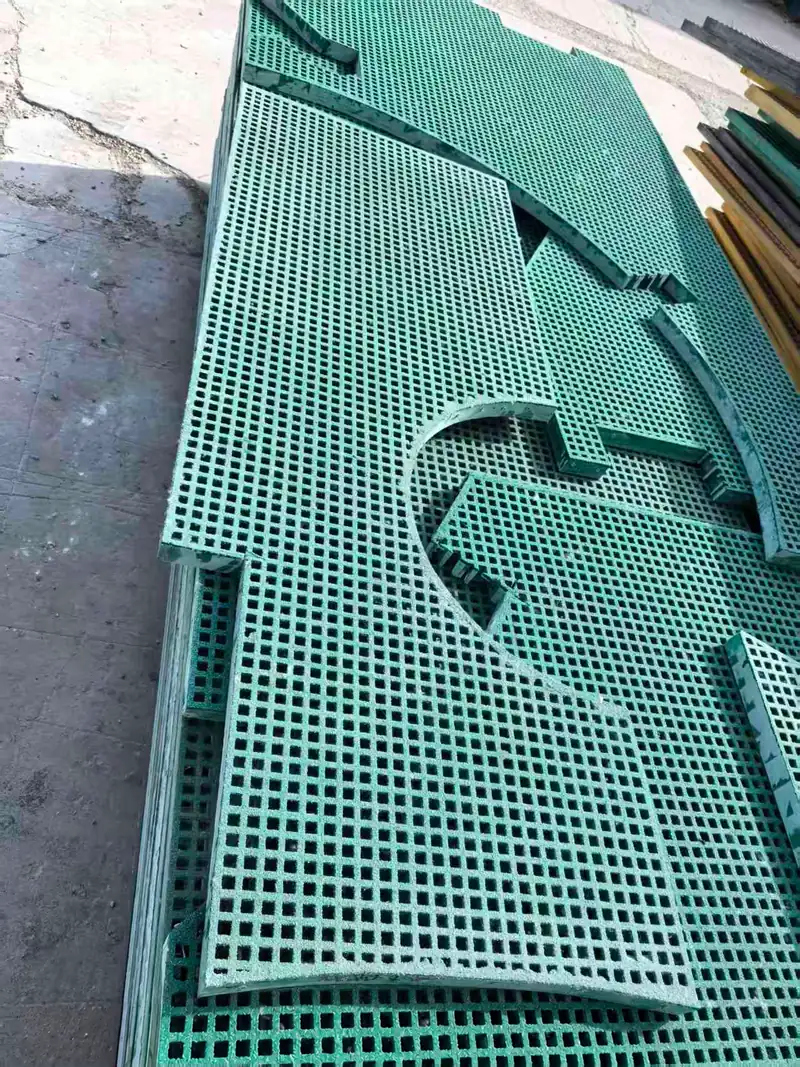

Dengtai mini mesh FRP grating pieces cut with curved and angular openings — Dengtai cut-to-size mini mesh panels. Cut dimensions and any requested resin edge sealing are agreed on the order drawing.

Molded and pultruded, made in Hebei

Dengtai Industry is based at the entrance to Beizhai Village, Jingxing Mining District, Shijiazhuang, Hebei. We produce molded and pultruded grating and confirm the panel, fabrication and documents against the order.

See our manufacturing capabilities

Fabrication and clips in the same order

We supply full panels, cut pieces, openings and requested resin edge sealing. M, L and C clips can be matched to panel height in galvanized or stainless steel. Agree dimensions and cutting orientation on the drawing.

Review factory cutting and edge sealing

A traceable factory test report

Our Jianxing factory is the client named in report HZTC/BG-24051102, issued on May 17, 2024. It records appearance, hardness, water absorption, oxygen index, tensile and load tests for submitted samples. Review the report scope against your supplied configuration.

Read the test summary and download the full report

Buying from Dengtai

How to Order FRP Grating

Quote the actual order

Quotes are normally FOB. Cut pieces are generally priced by delivered area, with their dimensions and cutting loss affecting the unit price. Yellow, green, blue, gray, black and custom colors are available.

Start with a sample or small order

A standard 3 × 3 cell sample is free; the customer pays freight. Custom samples are charged. There is no fixed MOQ, and small orders are reviewed against freight and fabrication cost.

Plan production and shipping

Normal terms are 50% deposit, with the balance before shipment. Production usually takes 15–30 calendar days from deposit; transit is additional. Export packing normally uses EPE foam, stretch film, wooden pallets and iron supports.

The suggestion to customize above 500 m² is an economic guideline, not a minimum order requirement.

Ask the factory

Request Your FRP Grating Quote

Send your application, sizes, quantity and destination. Not sure of the product or resin? We can help.

A drawing or cut list helps us review fabrication
Support spacing and loads help us select the panel
Chemical and temperature details help us select the resin

Product Type

＋ More specifications (size, quantity, span, environment)

Resin System (optional)

Panel Size / Thickness / Mesh

Quantity

Support Span / Load

Operating Environment

Destination country or port

Name *

Phone / WhatsApp

Work Email *

Drawing or BOQ (optional)

PDF, DWG/DXF, image or Office file. If the file is larger than about 10 MB, email it to jouth@frpgratingco.com instead.

Project Notes (optional)

Molded and pultruded grating · Full panels or cut to size · No fixed minimum order

Fiberglass (FRP) Grating Purchasing Questions

What information do you need for an FRP grating quotation?

Start with the application, sizes or drawing, quantity and destination. Include support spacing, loads, chemicals and temperatures if known. You can send an incomplete brief and ask for help with product or resin selection.

Is factory cutting always cheaper than buying full panels?

It depends on the cut list and material loss. Cut pieces can have a higher price per square meter, while reducing the full-panel area, offcuts and site work the customer pays for. We compare the actual sizes rather than promise a fixed saving.

Does a thicker panel or a higher-grade resin guarantee more load capacity?

No. Clear span, support conditions, bearing direction, load type and allowable deflection must match the panel. Changing resin to suit a chemical environment does not replace a structural load check.

Can I request fire-retardant, anti-static or UV-resistant grating?

Yes. State the required function and acceptance criteria before ordering. Resin, additives or surface treatment are selected accordingly; a resin family or panel color alone does not prove a tested performance grade.

Is FRP grating maintenance-free?

No. Clean the grating and inspect bars for cracking or fiber exposure, surface wear and loose fixings. Repairs must suit the resin and any grit, conductive or protective layer. The maintenance interval depends on the environment, loading and condition of the supplied panels.

How are delivery problems or quality issues handled?

For quantity discrepancies, transport damage or product quality issues, we review the order and the actual problem to agree replacement, refund or another suitable remedy. Warranty and feedback periods are agreed per order; a small ordering allowance can help cover cutting or transport loss.
